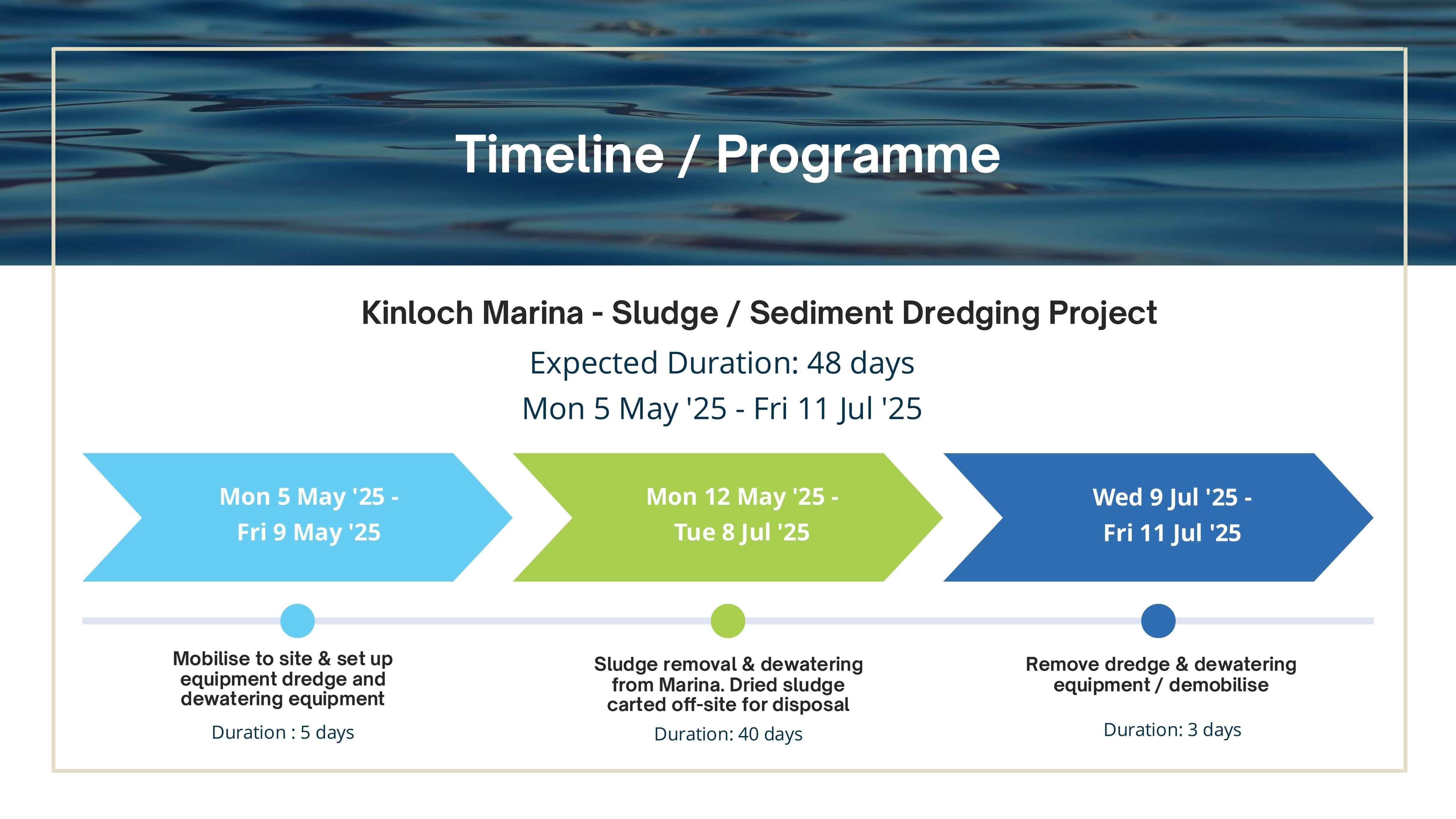

Sitecare started dredging on 5th May 2025.

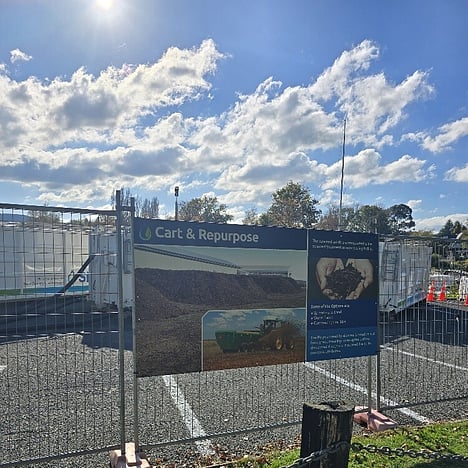

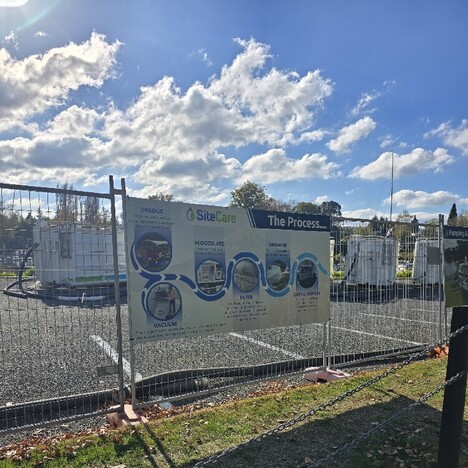

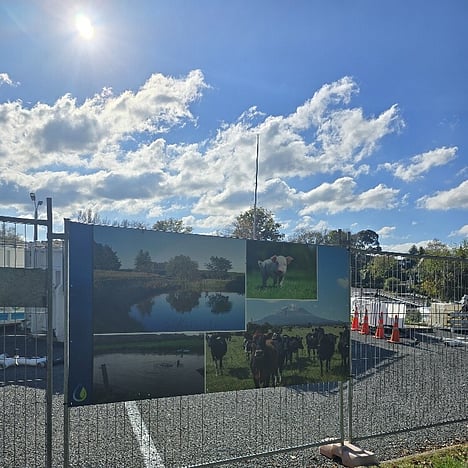

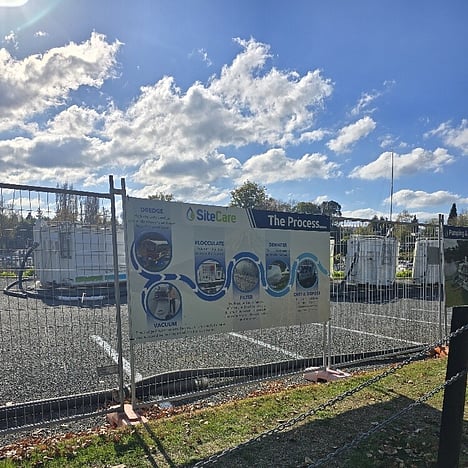

Can we encourage you to come down and have a look as on the outside of the fence by the bridge they have put up some story boards of the whole dredging process from start to finish.
Objective

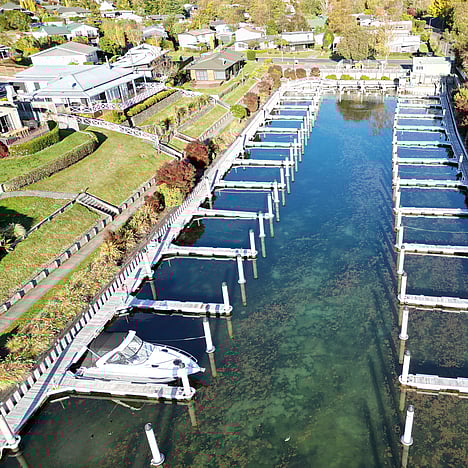

We aim to reduce the levels of built-up sediment and weed to improve vessel berthing.
Scope Of Works

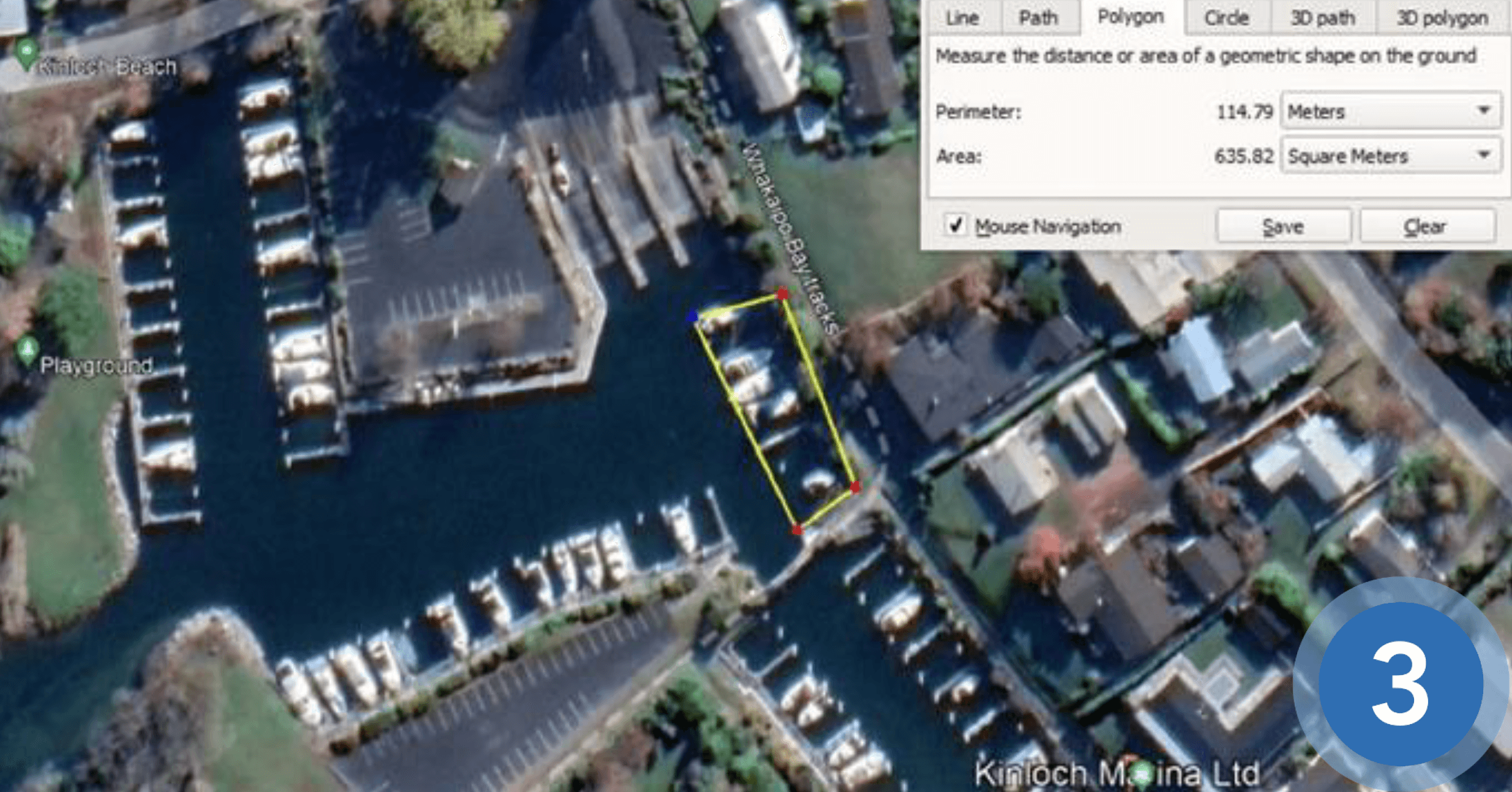

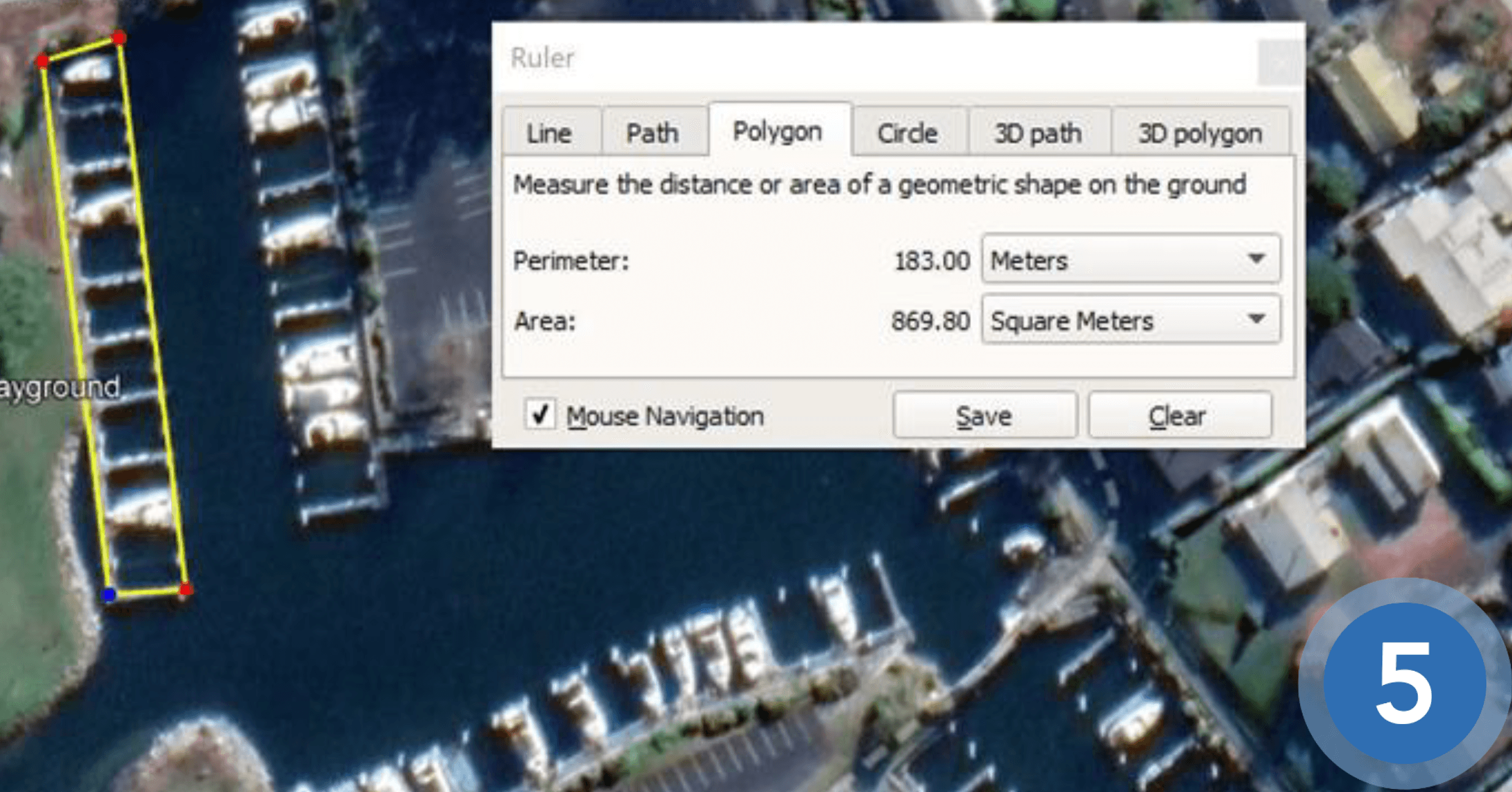

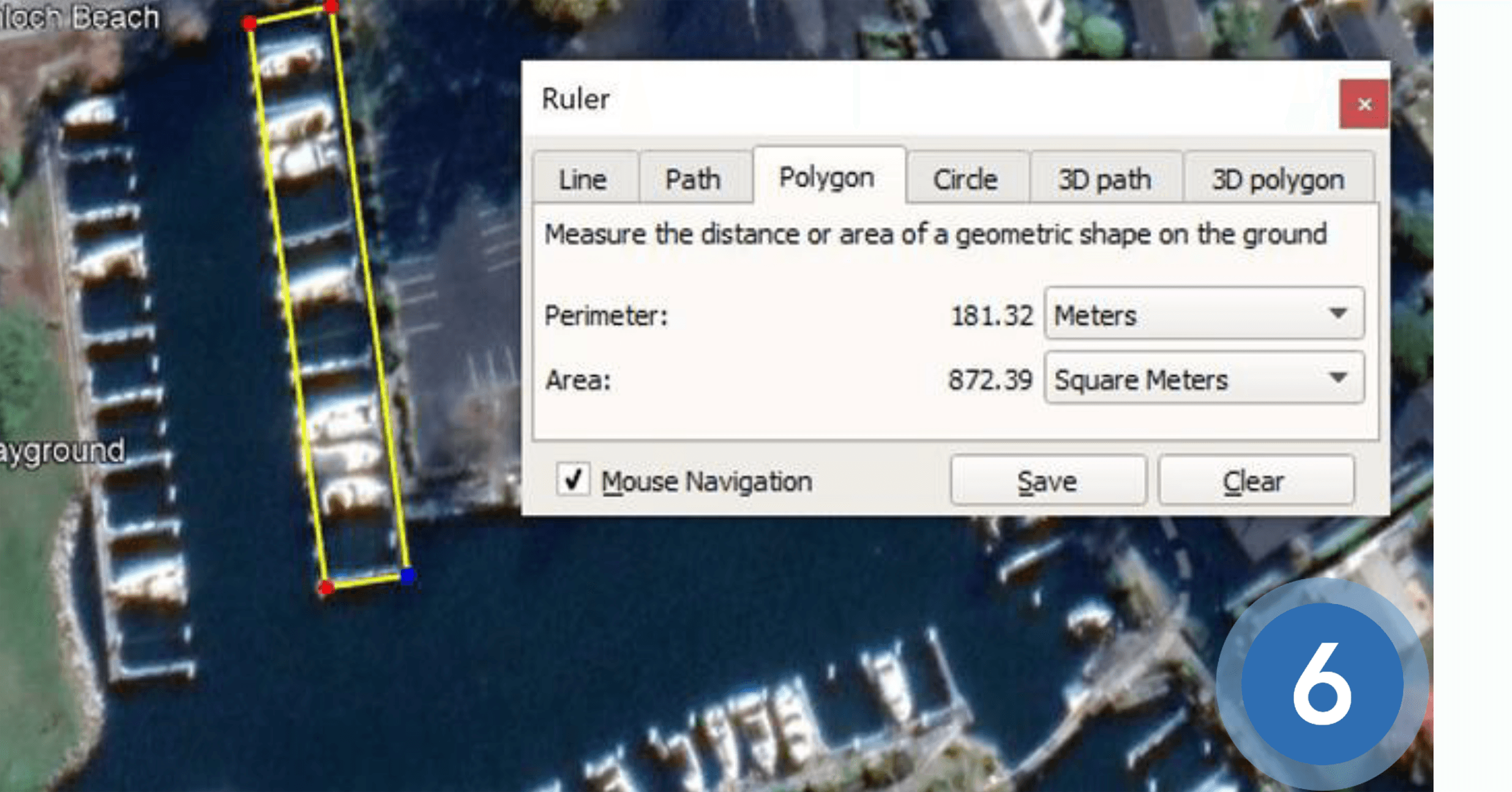

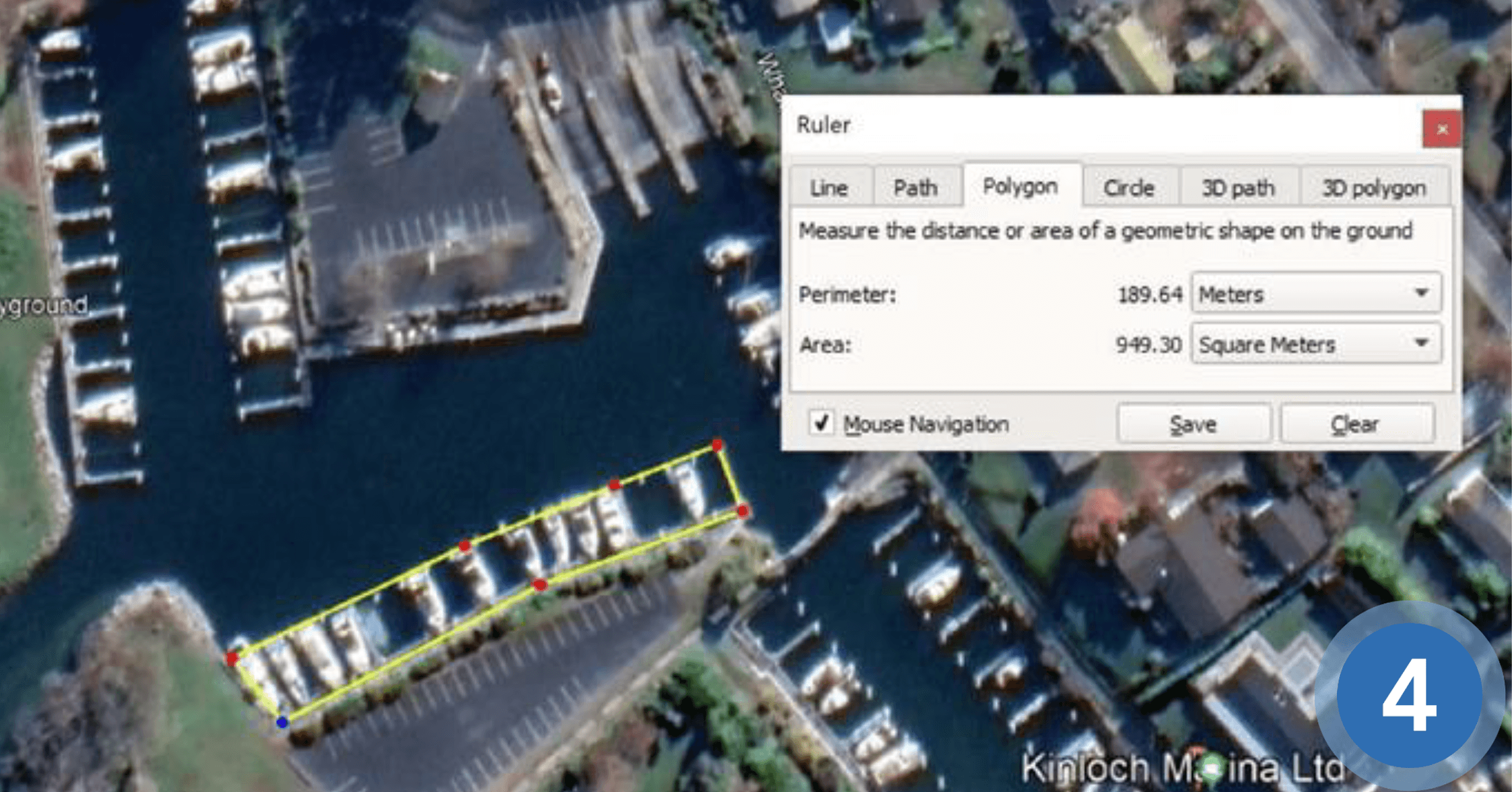

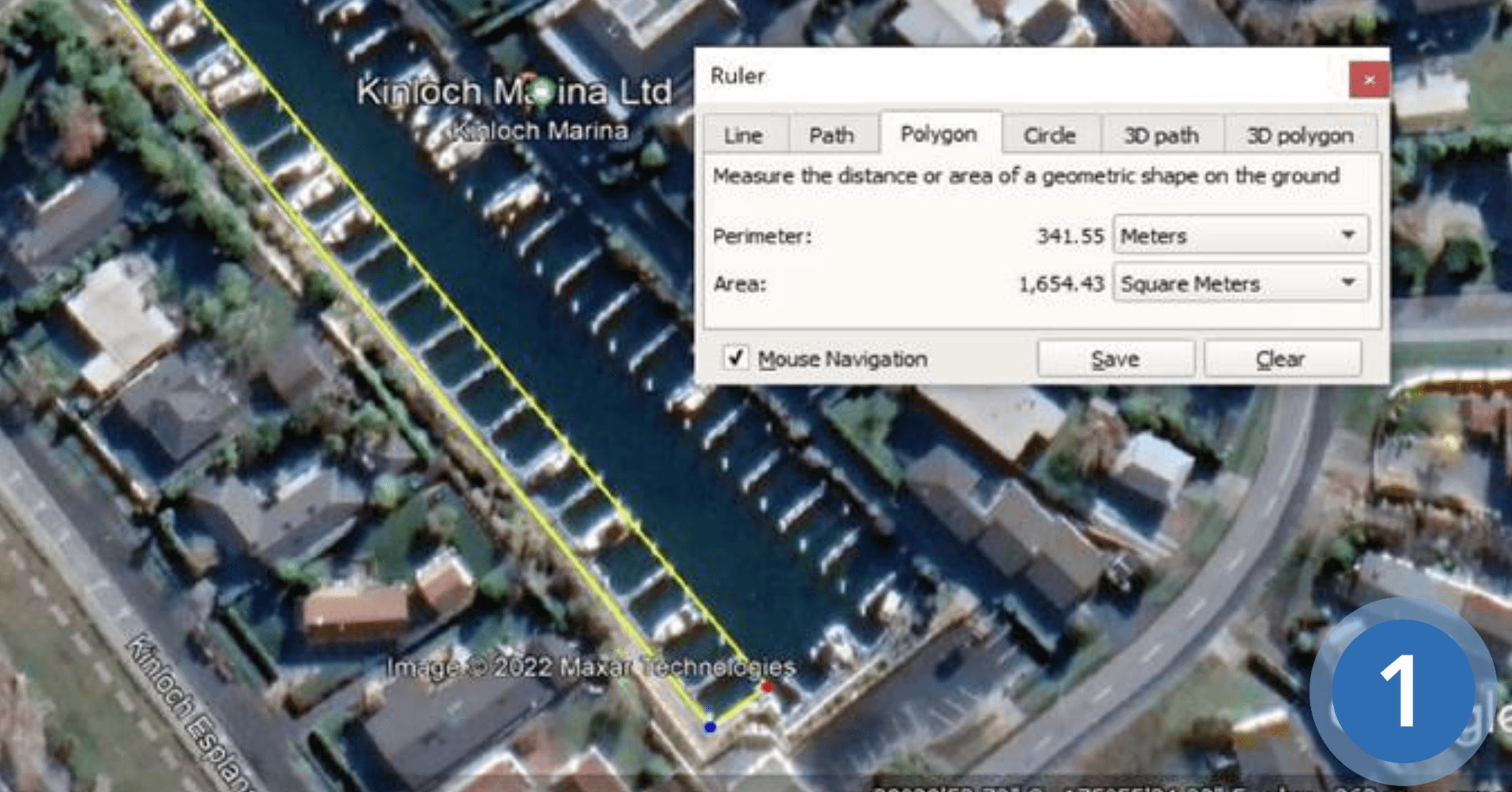

The nominated areas of the marina are to be dredged to remove the nominated amount of sediment and organic matter (see “Sediment and Organic Matter Removal Locations Plan”).
A total of 318 tDS is to be removed, which is estimated to equate to 3,986m3 of material

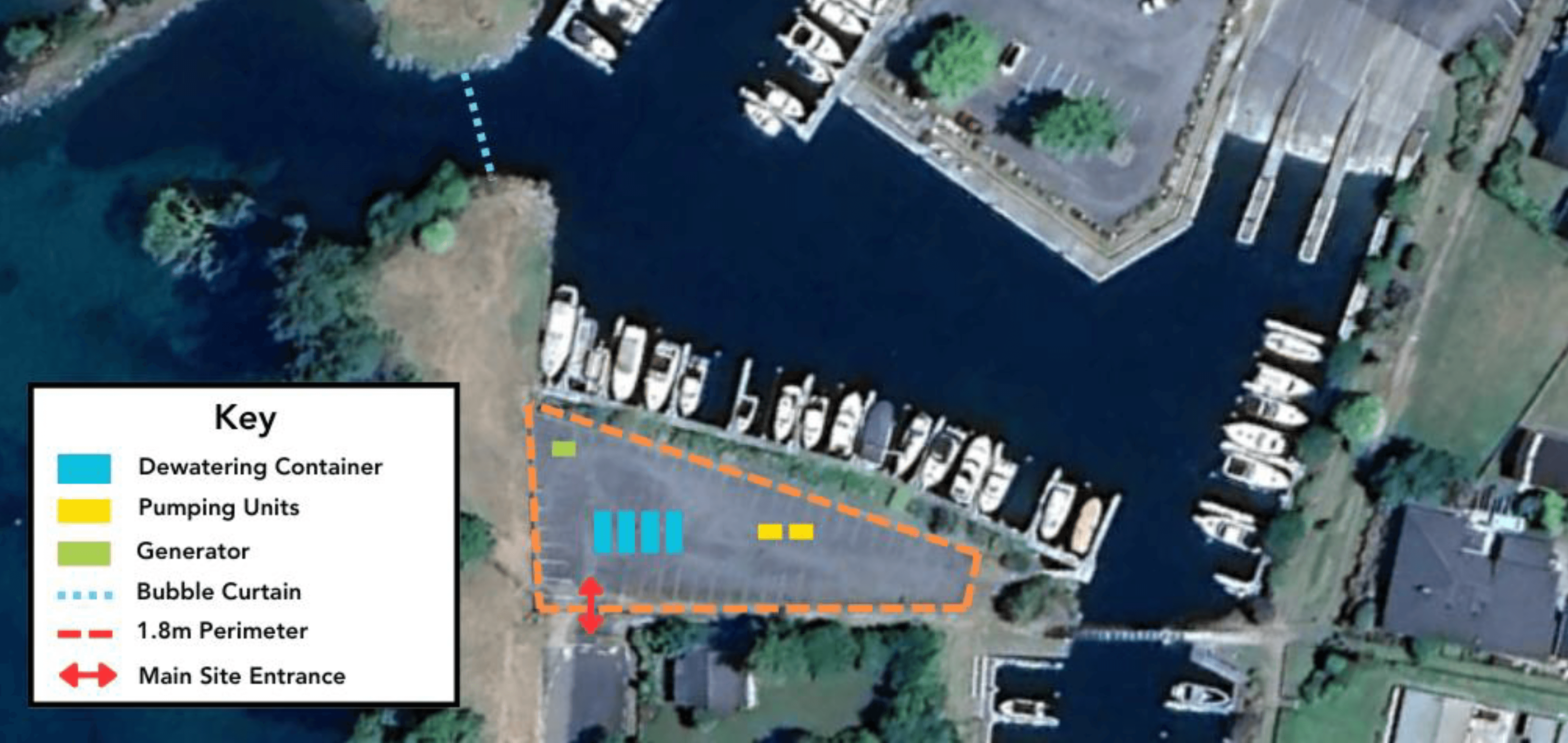

Equipment Location

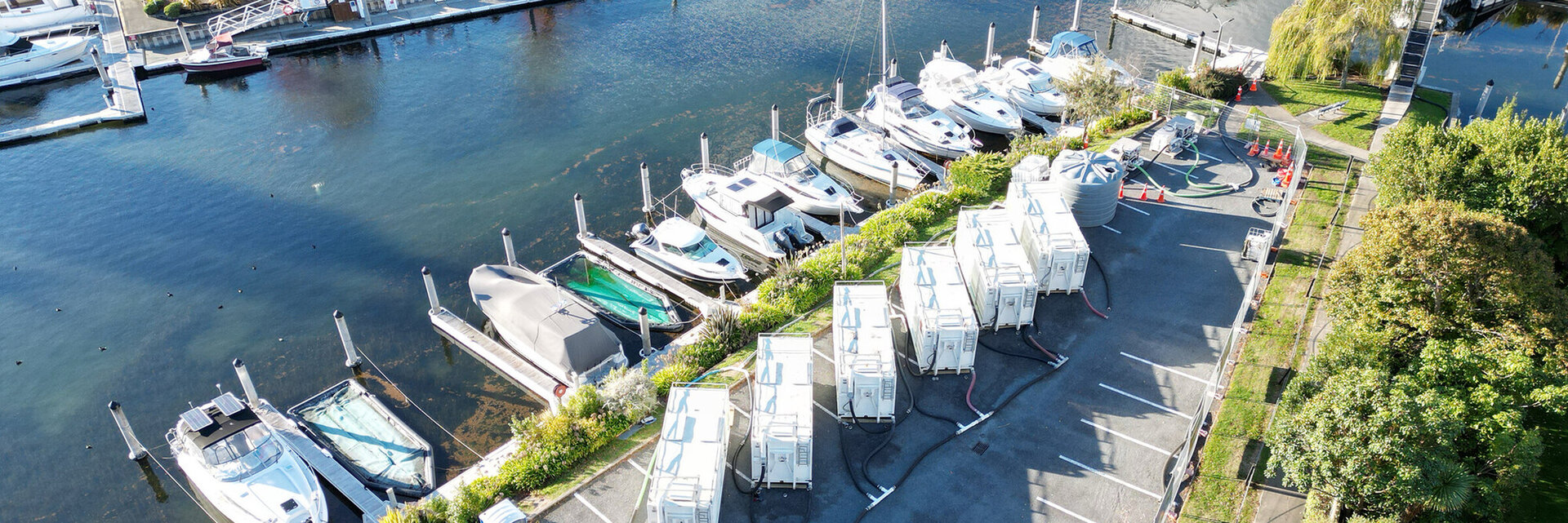

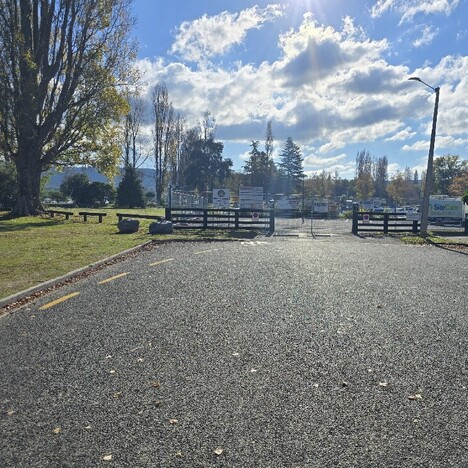

The car park at the end of Kinloch Esplanade will be fenced off and inaccessible, as this area will be used to accommodate dewatering plant and equipment.
Key Equipment
Bubble Curtain
Placed across the entrance of the marina to prevent any disturbed sediment from entering the lake. This will be weighted so it runs along the bed of the marina, allowing boats to pass over.

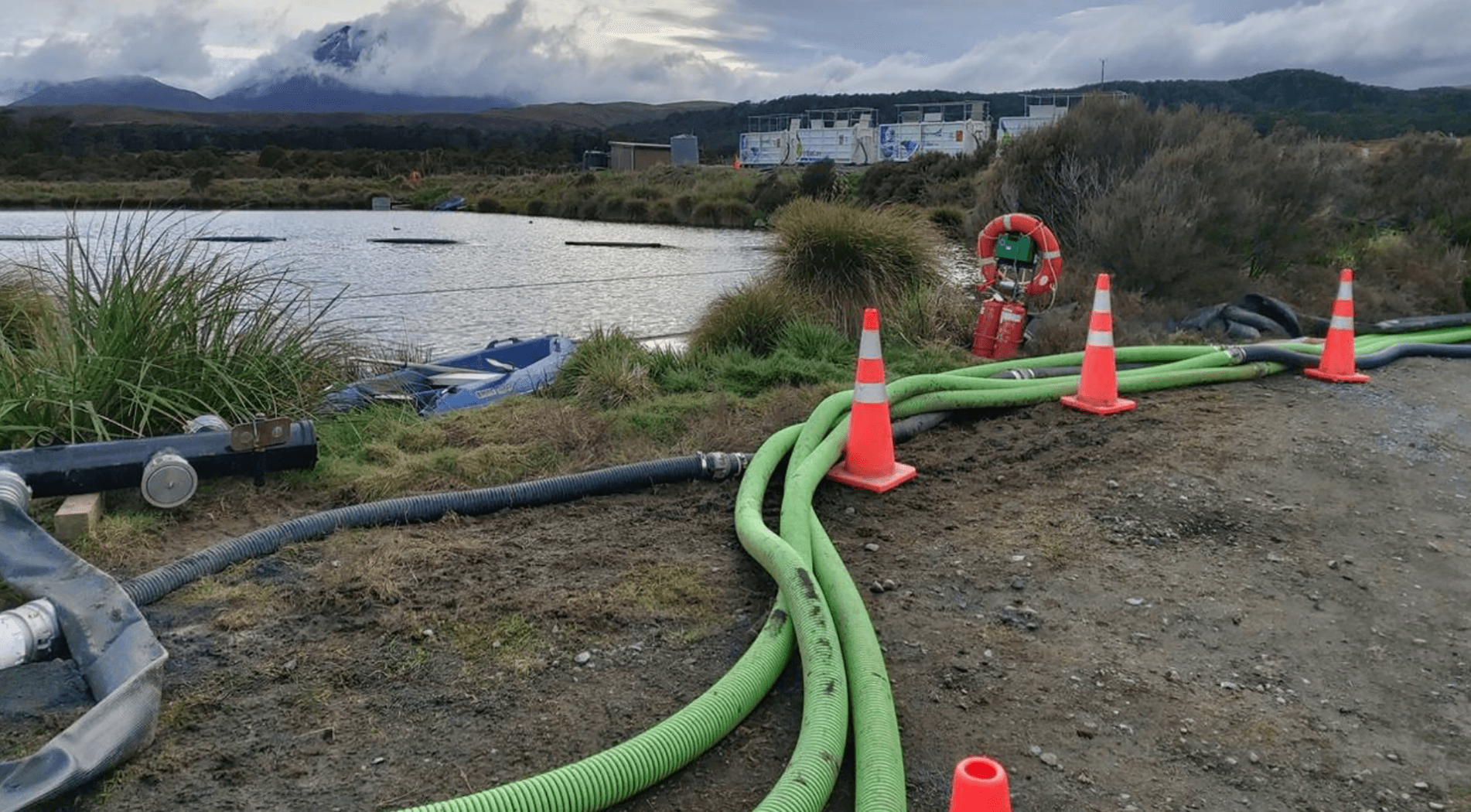

Hoses
Multiple hoses will be in place to carry the dredged material and to return the water to the marina after water/sediment separation.

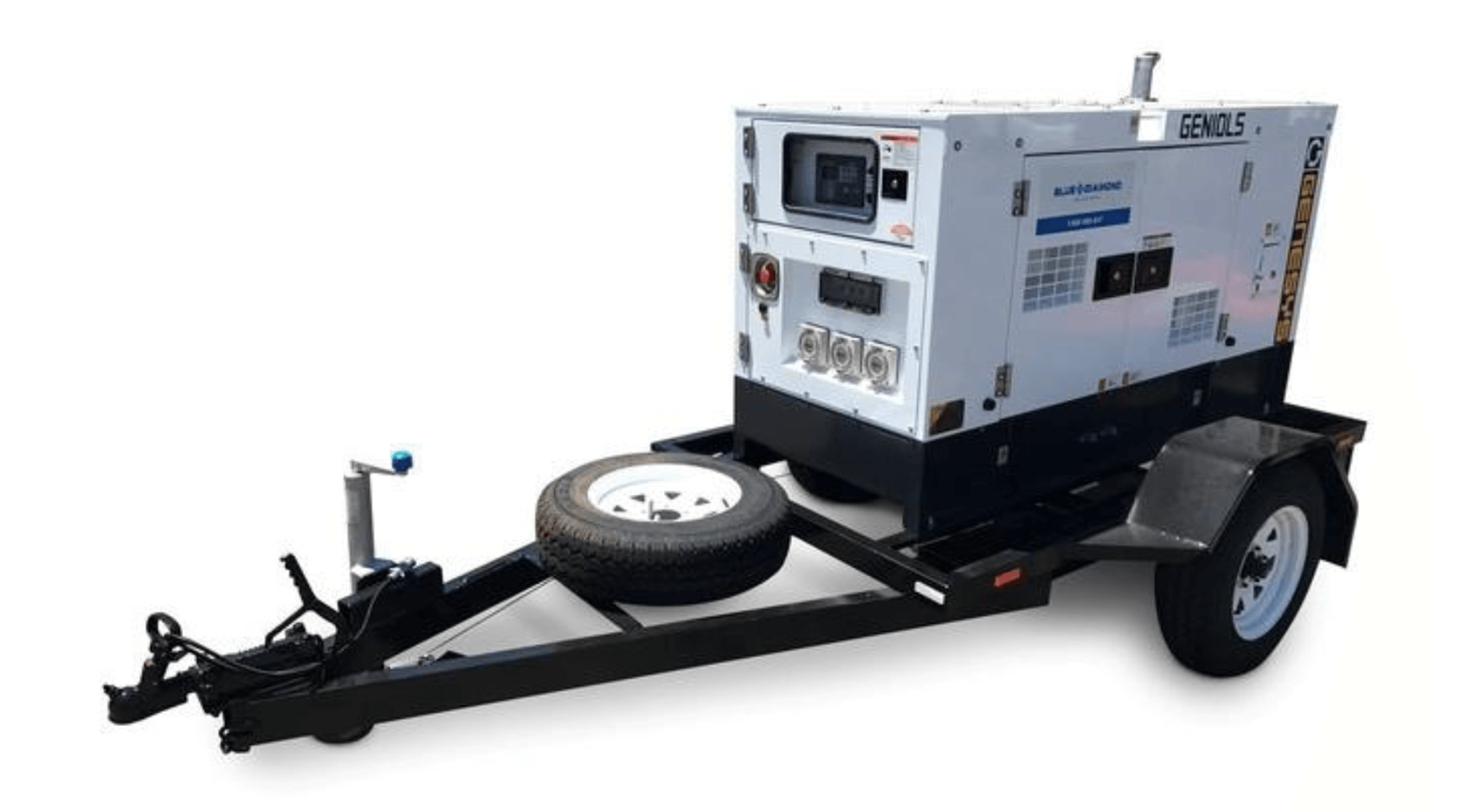

Generator
Powers the dredge and compressor that provides air to the bubble curtain.

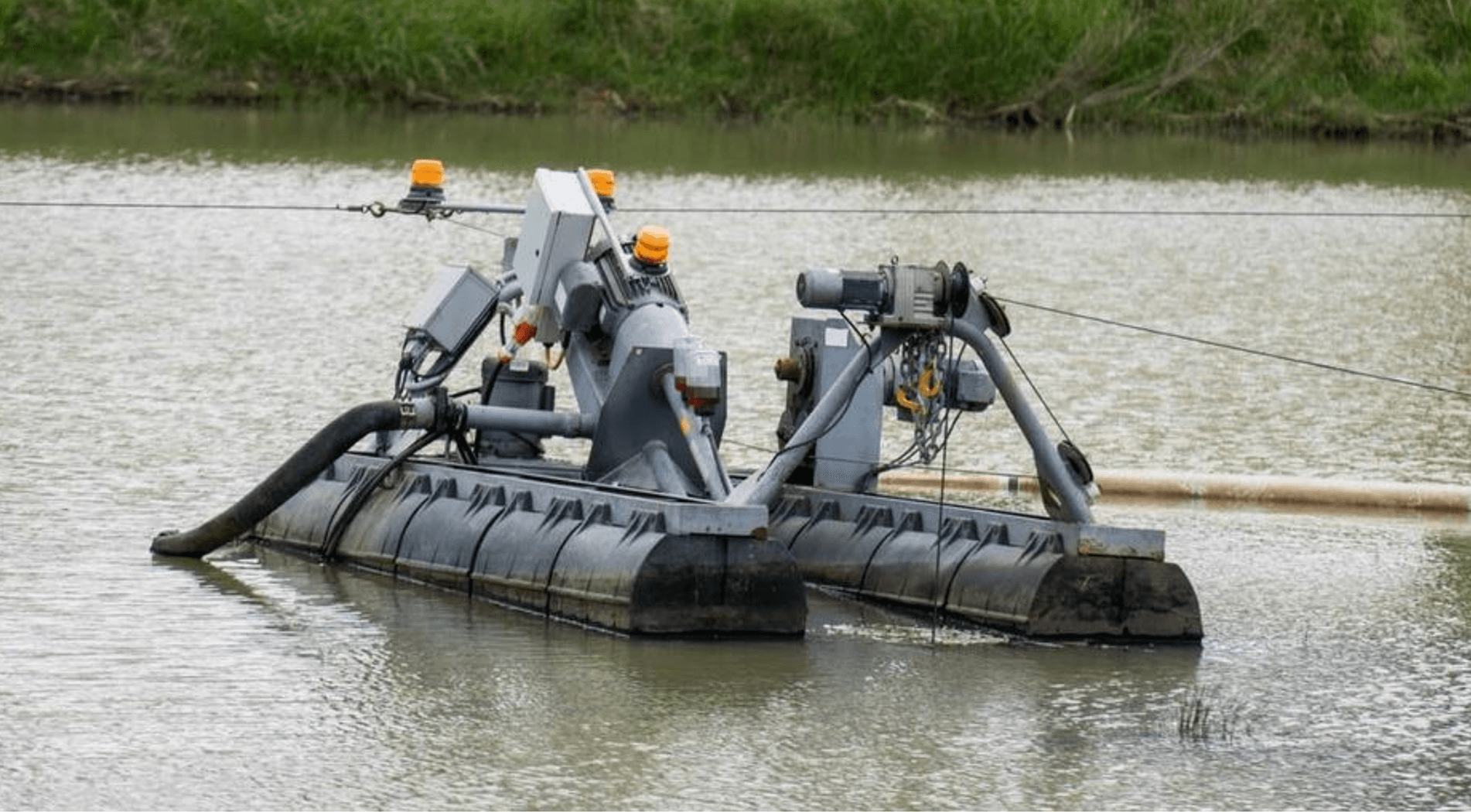

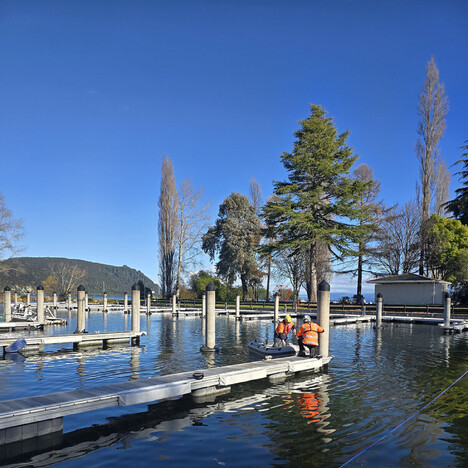

Dredge

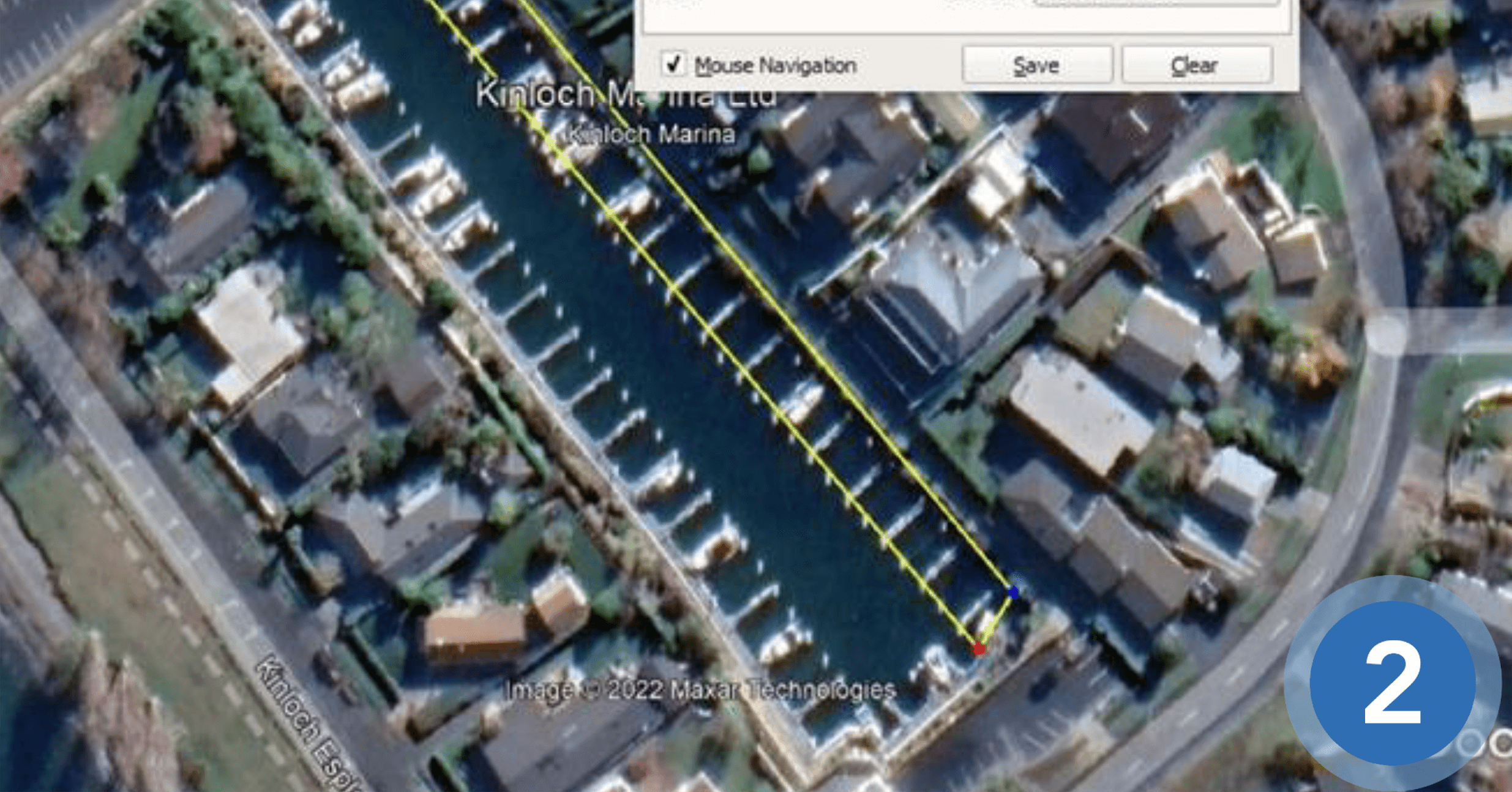

Floats in the marina and attached to wire rope cables crossing the marina. Collects the sediment & weed and pumps it into the floating hoses.

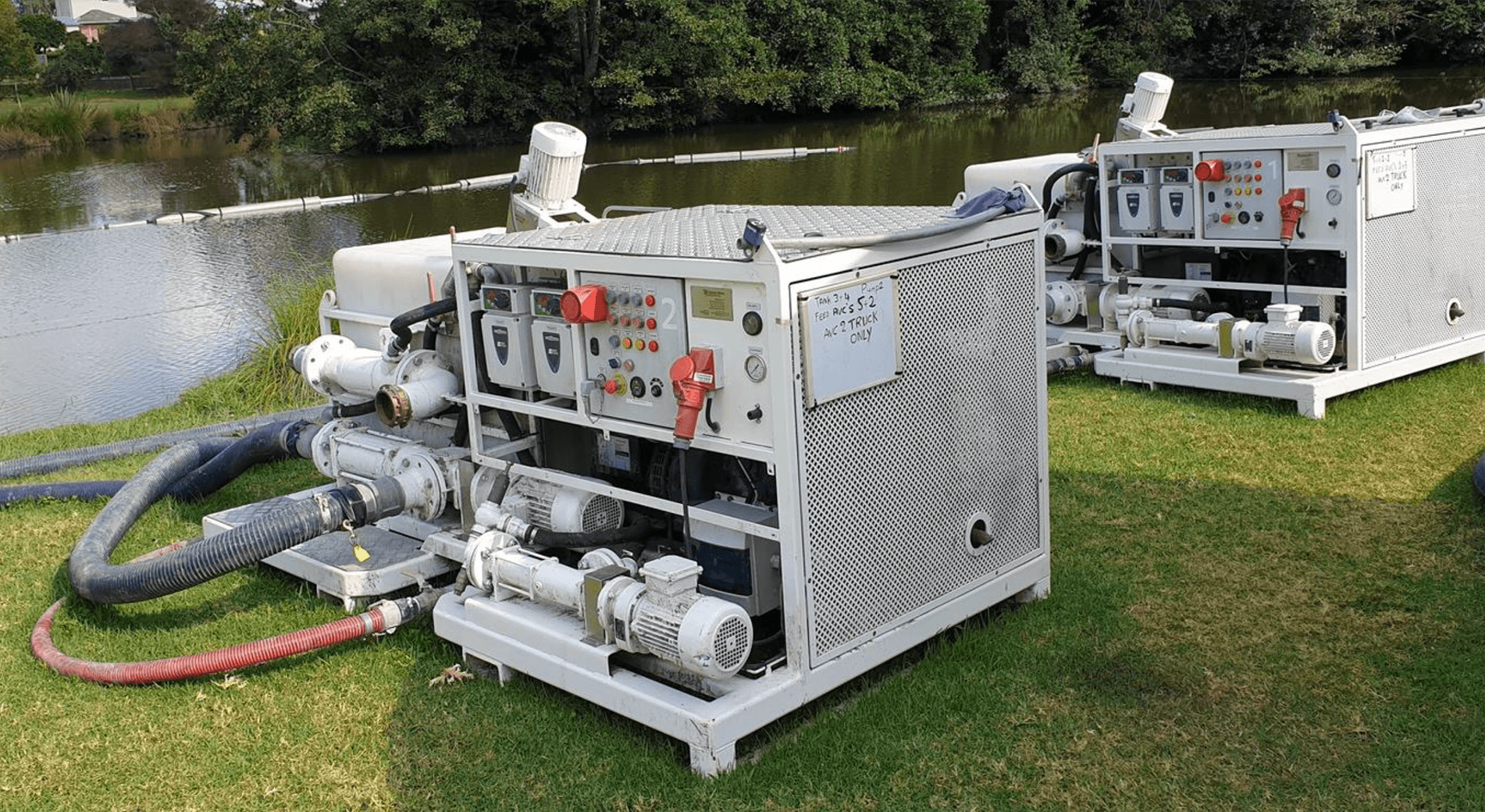

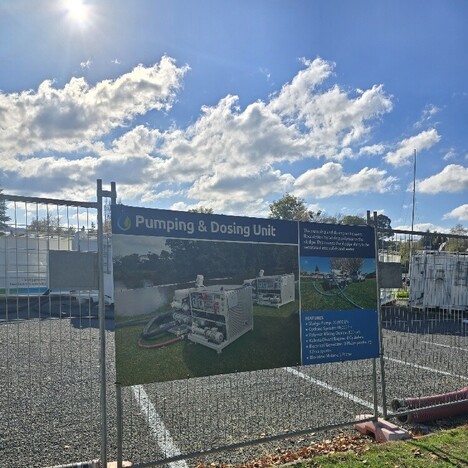

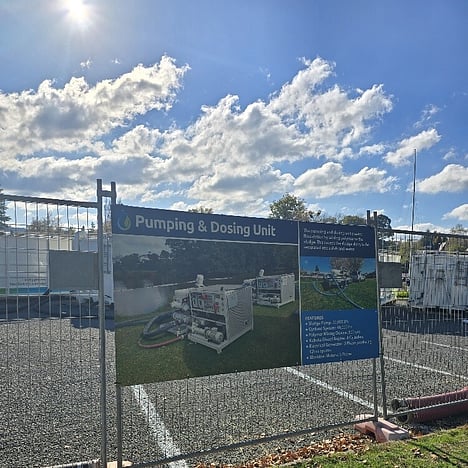

Pumping Units
Receive the water and sediment from the dredge and dose it to create the separation process.

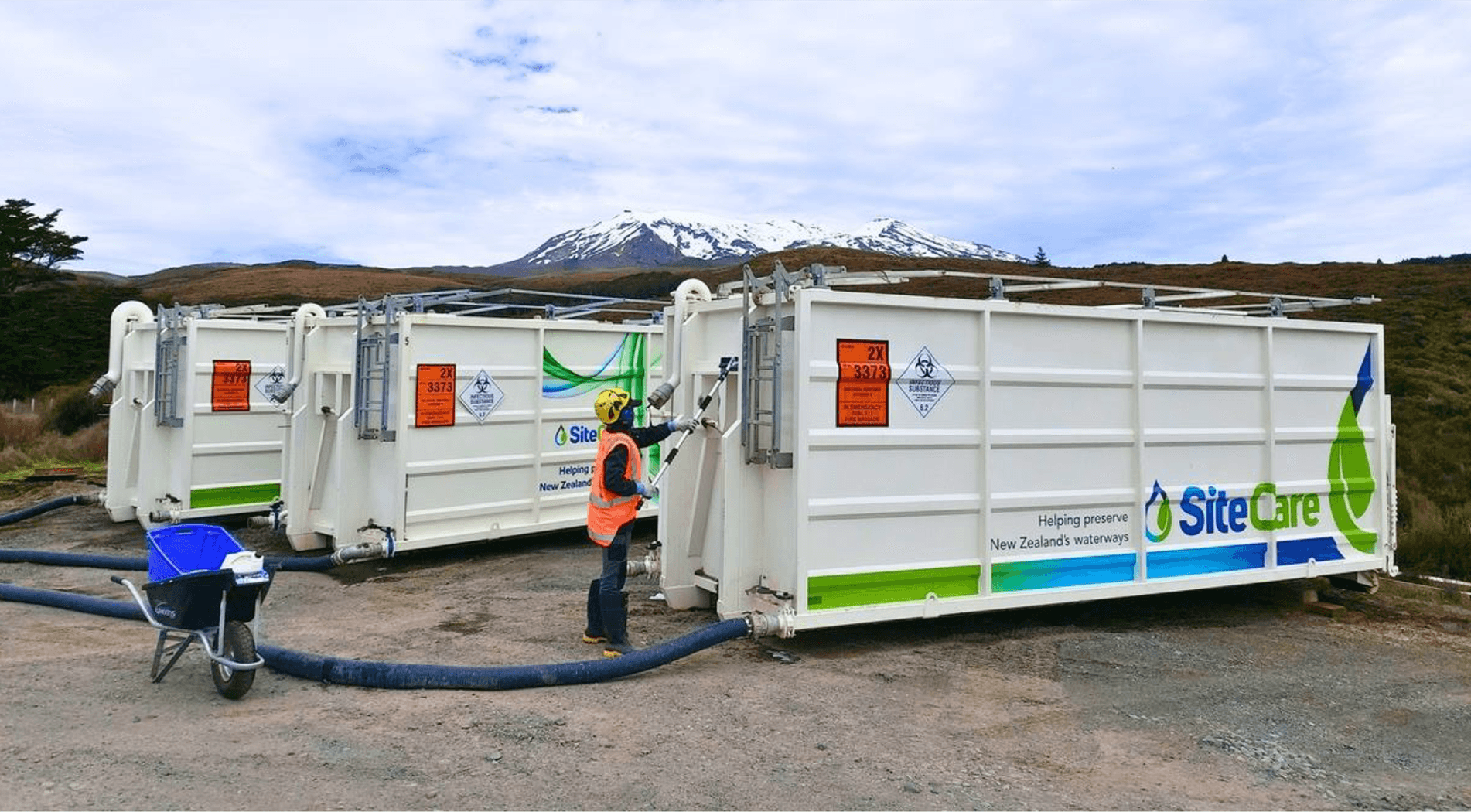

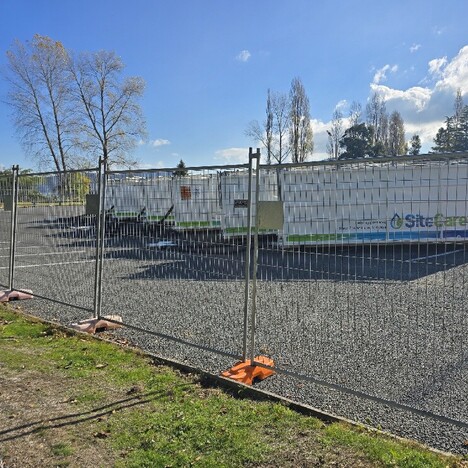

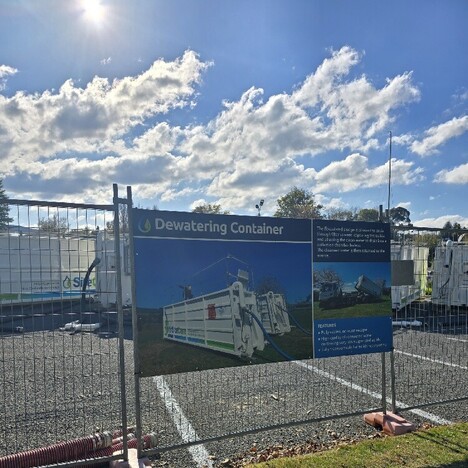

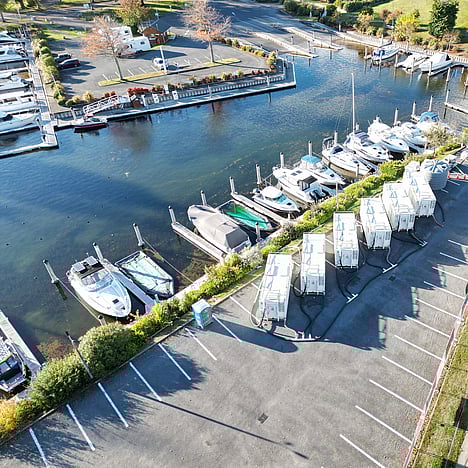

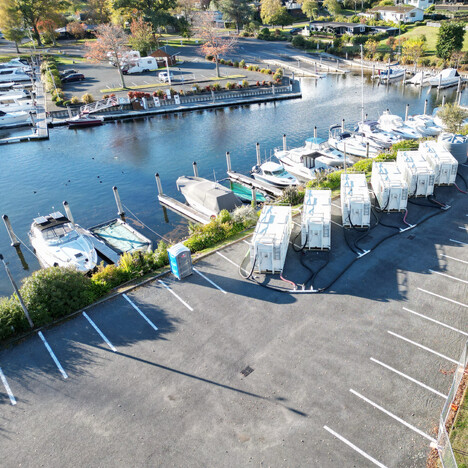

Dewatering Containers
These separate the sediment and water, collecting the sediment.

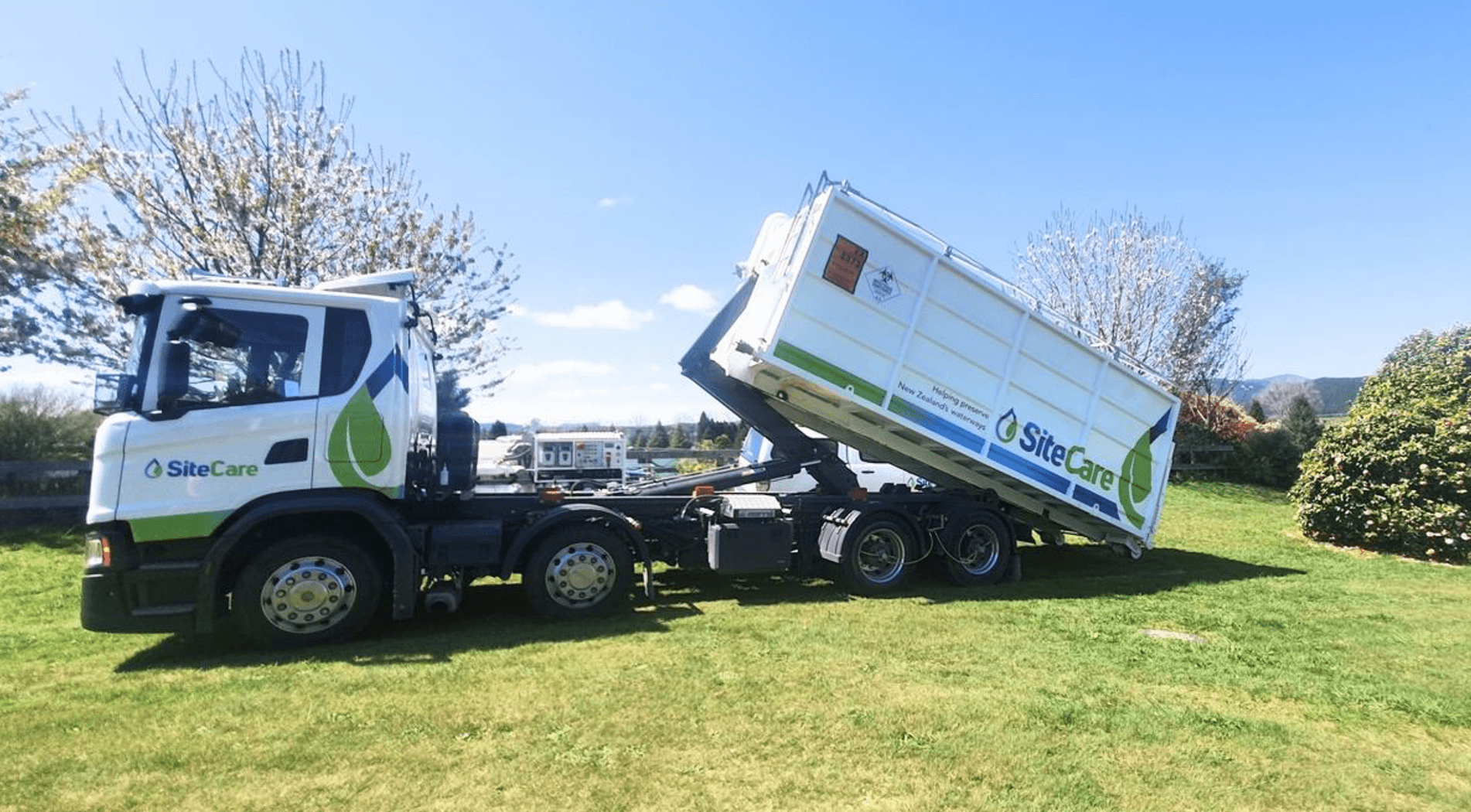

Hook Trucks
Uplift the Dewatering Containers when full and transport to an approved location for unloading.
Hazards
More traffic on Kinloch Esplanade than usual.
Deliveries of equipment and unloading with Hiab.
Heavy vehicles will be accessing/exiting the carpark daily, via Kinloch Esplanade, for the uplifting and transportation off-site of the dewatered sludge material.
During dredging activity, there will be dredging equipment with hoses within the marina, with some hoses crossing over walkways to reach the dewatering area.
